Data Acquisition and Analysis Software



•   Setup wizard
•   Automatic calibration of all channels
•   Storage of unlimited number of inspection setups
•   Creation and management of inspection list (tube lists)

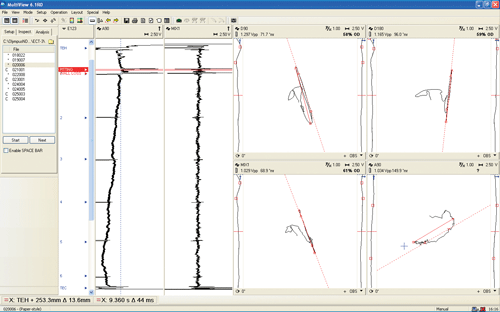

•   Impedance plane and strip chart presentations of ECT and RFT
data
•   Amplitude and phase measurement of ECT and RFT data
•   Phase and voltage to depth curve
•   Automatic data recording synchronized with tube list

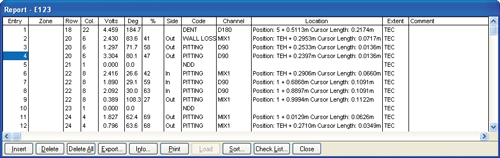

•   Screen printouts, tabular reports



MultiView tube inspection acquisitions and analysis software provides voltage plane analysis, voltage plane theoretical curve, circumferential sizing overlay, calibration of three depth curves with only one reference point, voltage plane calibration without a support-plate signal and dual-driver software control. In addition, it offers offline cylindrical view, pit-depth measurement cursors, display of wall loss (%) and remaining wall, and real-time C-scan acquisition.



MultiView is a PC-based software application used for data acquisition and data analysis of eddy current, remote field, near field, magnetic flux leakage, and ultrasound IRIS signals. Used in conjunction with the MultiScan MS5800 acquisition unit and TubePro tubesheet mapping-reporting software, it offers a remarkably complete solution package for heat exchanger tubing inspection applications.

MultiView has been drastically improved over recent years. Feedback from customers, continuous enhancement, attention to detail, and dedication to customer satisfaction have contributed to the version currently available on the market.

By distributing the TubePro software application, which supports easy data exchange with MultiView and has several ground-breaking, advanced 2-D and 3-D reporting capabilities, Olympus has redefined reporting for heat exchanger tubing inspection.

Both the MultiView and TubePro software applications are compatible with Windows XP, Windows Vista, and Windows 7, and work equally as well on laptops (for field usage) as they do on desktop computers (for advanced data analysis and reporting).

No other system offers as many capabilities as MultiView, TubePro, and the MultiScan MS5800 system used in conjunction with one another!
